Scalextric Karts Makeover

Scalextric make a fun little slot car in the form of a Go-Kart.  They are a bit of an odd size, made for the 1/32 scale track, but these guys would find it hard getting into the normal 1/32 scale cars.  They are a fun little slot car to drive, with and without magnets.  But I just think they look a bit ....meh!

So it got me thinking, there is a blue kart and a black kart.  Not too much of a stretch to my imagination that they could be a couple of current F1 drivers out for a bit of fun.  So I have got out the miniature paints and started with some broad strokes at first to get a sense of how this could look.  So far it is early days, but I think this looks promising!



Slot Cars - scale racing as the road to fitness.

Lockdown has made it a little difficult to keep in any kind of shape, and the current weather also not helping the motivation.  So I made myself a little extra motivation to get out and exercise whenever I have a little free time.

I figured the cord on the controller was long enough to use from the cycle trainer and now get in a few laps while exercising in the garage.  I put a little grabber on the side for the occasional deslot, and then the time just seems to fly by for the exercising.

Now has me thinking of something a little more ambitious.  Maybe I can use the small light dynamo from the cycle wheel to actually power the car....

Slot Cars - New table up and running,

Finished the wiring and basic landscaping.  Now time to enjoy for a while.

The track still could do with a few minor tweaks but will run it in for a while first.

I do like having the landscape use light and sound to indicate laps and best laps.

It will be interesting to see how well the copper holds up in the Japanese summer.

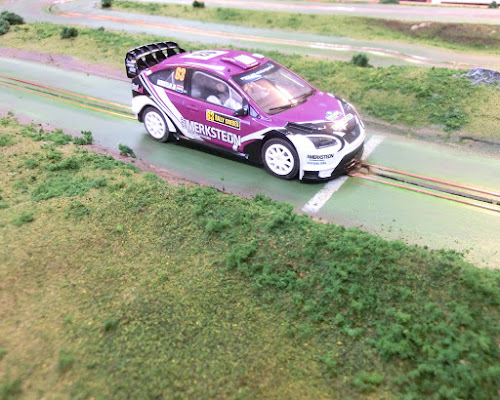

Slow test run in both directions to check consistent power pick up.

Slot Cars - Mini Table Scenery

A busy week working on these little models to be dotted around the track for part of the scenery.  All from a series of Dragonball models - except the one Gundam of course.  Visible at the moment are some wires.  These will be hidden and wired to a controller in the coming week.  The intention is they will all light up with different patterns to signal completion of a lap and another pattern for fastest lap.

The van.

Bunny girl in a hovercraft.

The roadster.

The motorcycle.

The monocycle.

And of course the killer robot!

Once this is all wired up the landscaping can be finished off and racing can begin.

Laser - Desk Tidy Tape and Clips

I am slowly but surely tackling the problem of the most untidy desk drawer I ever had.  It is just one big open space with everything chucked in there.  Time to get organized.

I already made 3 simple enclosures to keep my glasses safe.  Normal, reading, and hobby glasses now all have their own clean little segregated areas.  Now to tackle some of the other bits.

Clipper and tape are not so bad, but those little clips are everywhere, so they need to be sorted.

A couple of hours planning in my head and using Solid Edge software, I marked out some parts and crossed my fingers I had it right.

Too late now,  I either got this right or I have some firewood.

Time to assemble.

So far so good.

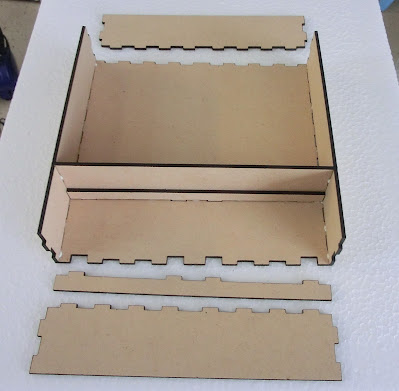

The nice thing about the laser is this type of wood stitching joint.  It is so accurate everything just slots together nicely.  A little dab of glue and it is done.

So accurate, you need to sand the final insert a bit.  The fit is perfect, but this piece needs to be removable with ease.  So the lightest of sandings.

All done for now.  Clipper and tape have a new home, and storage for those clips too.

Laser - Paint Station Project

This was a mini-project I completed one morning.  I had been doing a few models for painting and assembly at my desk.  The desk was getting a little cluttered and at real risk of me knocking a paint pot over creating an unwanted desk art 😒  Added to this, more than once I have been on hands and knees looking for a small screw or piece of model that I had dropped.

Enough was enough, time to get organized.  The following was done around a basic requirement for the work area.  This had to be the size of an A4 sheet of paper.  More than enough for the scale models and projects I work on.  So work area mapped out, add in some room for tools, paint pots and a loupe and I had the base.

Next to create the sides and locations for the paint pots to be kept securely.  A tight plan here as needing to try and keep the restraints of the whole project coming out of two sheets of 300mm x 400mm MDF.

A quick bit of assembly and dabs of wood glue and all done!

Here is where my limitation of the A4 size comes in to play.  it is now a simple job to keep the work area clean.  Once it becomes covered in paint, just drop in a fresh piece of A4.  All those tiny pieces can now be kept on a nice clean area and easy to see, harder to knock off the desk.  Paint pots will now also have less chance of tipping over.  The loupe is a clip on type and snuggles neatly between the paint pots and onto a piece of MDF between them.

A good mornings work.

Slot cars - Dragon Ball 5

So when thinking about the scenery for the new table, I wanted to add some quirks to it.  Sure a rally scene with mud, grass, and stone.  But also something a little off track :)

I found this - or at least part of this, in the Mech Collection Dragon Ball series.  A set of cheap little kits all with characters and different vehicles.  These I thought would be good in a little scene, even better if things like the headlights could work!

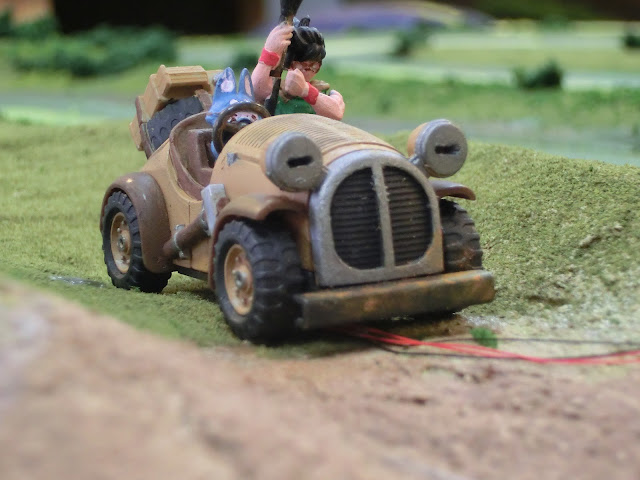

First one completed is Volume 5 - Yamcha's Mighty Mouse.

Trust me, fitting tiny LED's into the headlights was a task for these ham fists of mine, but hopefully be worth it in the end.

Slot cars - track test

I have been slowly so slowly working on the track, but finally made some noticeable headway.  First I smoothed out the joins with the individual pieces of track for smooth transitions.  Then applied a basic layer of paint to seal the surface and mark my general areas of scenery to come later.  Then came the trickier part, putting the wire down.  The plan of putting glue into the groove and then rolling the wire in for a tight fit did not exactly work out.  The wire still wanted to rise free of the track.  So this ended up being a case of using some weights to keep it in place until dry and then move on to the next section.

But in the end, it was worth it. Each power line was one continual smooth piece of copper wire.

Once this was in place, well you have to test it, don't you?

Not too bad for a first test while there is still a lot of tidying up and cleaning needed on the wires and guide slot.  The next step before getting heavily into the scenery and details is a few minor tweaks to the track.

Adding some extensions to the entrance and exit of some of the corners for a little extra drift time.

And also a little on the inside of some corners where there is a transition just before it.

Time to get back to the laser and cut some little pieces!

Slot cars - build progress

Well, it is a lot of time spent waiting for the laser to cut the pieces, then more and more of the same.  Each section is 3 pieces of MDF to get the right depth for the guide, and then a firm base to hold it together.

Base pieces were all offset by about 1cm.  This allows them to be joined together fairly strongly as opposed to just bonding them where the edges meet.  Two different lengths of straights and 2 different radius curves.  180-degree curves and also small section curves to get a mix of corners.  Last but not least, a special straight with an 18mm hole for the car sensor.

Now all put together I can't wait to clean it all up, vary the heights, paint it and get the power on it.

Slot Cars - testing the design.

Now that I had my idea for using the laser to help build a new track with new power lines, I needed to test how this would actually work in practice.  So I made a small circular track for testing.  I used some useful feedback from those good folks over at the Slot Racer forum to tweak the design by making the groove for the copper wire slightly smaller than the wire diameter.  This helped for building the track.  I could now apply glue into the groove and then use a roller to force the wire into the groove.  This meant that friction could hold the wire in place while the glue set.

I did try to add some surface texture to the track, but this didn't work out too well and will skip this for the actual track build.

One concern raised was that the raised wire may lead to excessive braid wear, so fresh braids in and time to test run for a couple of hours.

Running..

After a couple of hours going in circles, the braids don't look too bad.

Braids after running.

I'm calling this a pass and will now start making a few different variations on track pieces and start putting together the new layout.

Slot Cars - a new track style.

While working on the new table track table track I was not happy at all with the braid being put on.  I only had steel braid left which was not ideal for a couple of reasons.  I did not want cars with magnets to have an advantage, and also with the temperature variations where it is stored, the braid would separate from the track surface.  I needed a better way.

And so back to my favourite tool, the laser cutter.  With the laser I can produce repeatable pieces of track over and over again.  As long as I keep within a 30cm x 40cm piece of board, I have freedom to create any type of straight/corner pieces I like, mix and match them in much the same way as a traditional plastic track.  The power lines are made using 1.2mm copper wire which is recessed into the track via "engraved lines".

Will be playing with this some more before going full scale on the table.

Laser - Maintenance

Today I decided it was about time I took care of my most useful tool in the garage, the laser cutter/engraver.

This machine gets a lot of work from me and thank fully had very few issues with it.  These work great if you look after them.  My particular laser is a Ten High 40w nodel.
https://www.ten-high.com/

I use this for all sorts of little projects and it pairs very nicely with an excellent 2D design application Solid Edge which is free from Siemens.
https://solidedge.siemens.com/en/free-software/overview/

Mostly I use MDF board as my medium of choice.  If is readily available, strong enough for my purposes and cheap.  The local DIY shop sells a 6 x 3 sheet for about $5 and cuts it so size for my laser.

The problem with it is that where the laser vaporises it, it leaves all sorts of residue.

Also many little cutouts also fall into the machine.  Maybe I am over cautious, but where a laser is running hot enough to vaporise material, I think it good to clean flamible material out every now and again.

The residue it leaves on surfaces is another issue.  It is sticky and coats everything.  This can lead to uneven movement on the guide rails, and also a loss in cutting power due to dirty mirrors.

Some elbow cleaning solution and some elbow grease, and before long we are back to full power and happily cutting the next job.
